ARS (Pipe Auto Routing System for EPC)
ID2
MARKUS
ISSUE-I
Main Function

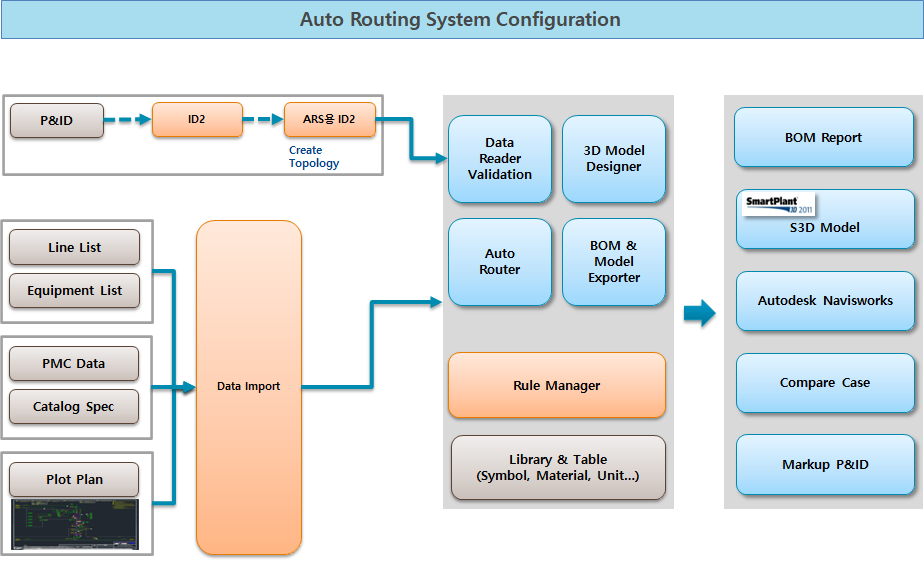

Designed to enable the generation of
basic information for Auto Routing
integration with
Intelligent P&ID (ID2)
.
Designed to allow optimal
Routing Path
configuration through
Rule
management.
Prioritizes line sequencing for optimal routing considering cost.
Applies special patterns for Pump, Filter, and Heat Exchanger.

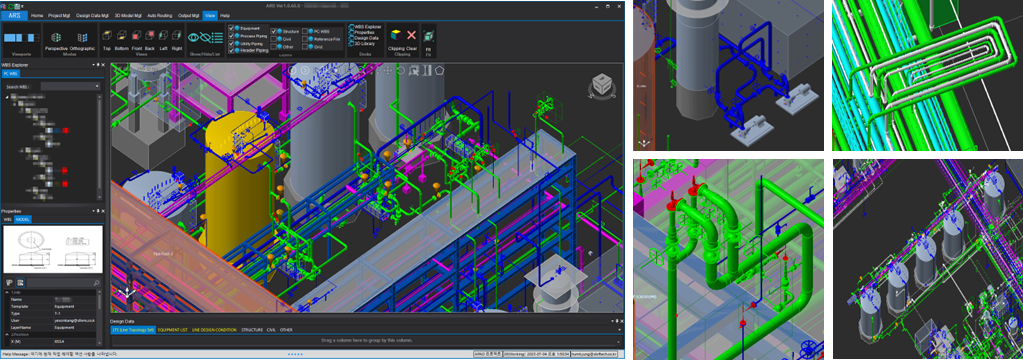

Provides the functionality to modify piping lines using geometry (3D view).
Calculates piping quantities by WBS.
Generates reports comparing quantities for each case.
Converts ARS 3D models to Autodesk Navisworks.
Converts ARS 3D models to Hexagon S3D / AVEVA E3D.
Marks routing results (Success, Clash, Warning, Fail) on the original P&ID.
